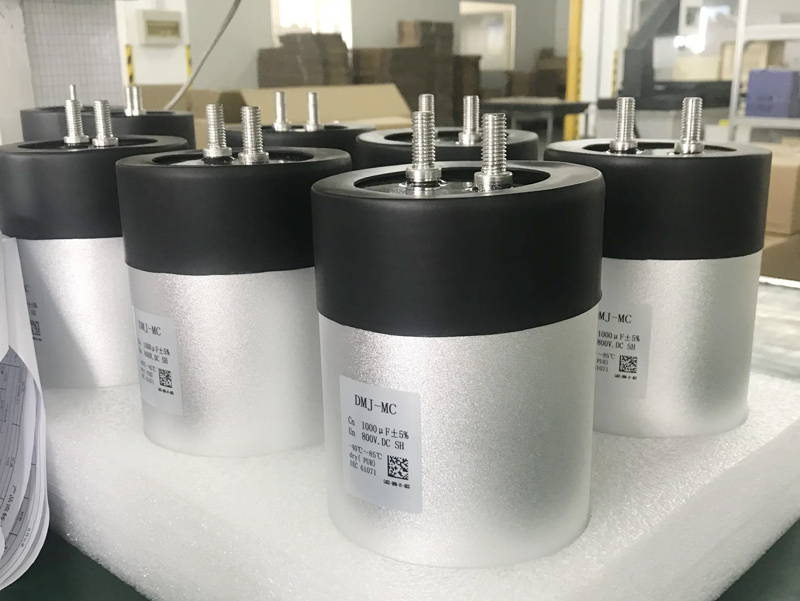

High voltage DC-link capacitors

DC link capacitors supply offset the impact of inductance in inverters, battery operation, and motor controllers. They provide filters that prevent EV subsystems from voltage rush and EMI. The preparation of capacitors are high voltages that happen constantly and which may overlap with high voltage frequency ripple and this is the advantage of this it will be high ripple current capability. Usually, capacitors use metalized polypropylene insulation, which is a controlled advantage of the self-healing method and handle premium insulation at high working temperatures. you will see capacitors in high voltage applications, that store electric charge and release it to power circuits. They produce power to help promote system performance, quality, and efficiency.

There are two essential types of high voltage capacitors:

● Film capacitors, these capacitors have a high insulation resistance, and high performance even when exposed to high frequency and have premium capacitance stability. They also have a high pulse rise rate defined as the rate of change of voltage so making them fitted for large current circuits.

● Metalized film capacitors, depending on the manufacturer, some high voltage capacitors are internally fused, externally fused, or even fuseless and it's suitable with discharge resistors and it helps when it has been disconnected from a power network.

The term dc-link referred to the junction between two power conversion stages where an energy storage element. The choice of a dc-link capacitor relies on the intended application. They exist different capacitor technologies including ceramic, aluminum electrolytic varieties, and film. The DC-link capacitor voltage is called the DC input voltage to the inverter in the PV system. It comes from a dc to dc converter connected to pc system as input and the inverter as an output.

DC link is railway technology in an electric engine, the capacitor is applied in the middle circuit of converters for the different types. The purpose of using the dc-link capacitor is to supply energy from the traction power AC voltage grid within the middle circuit and converted it. And the most important thing is You will get a dc-link overvoltage in the case when your motor is generating power instead of taking it. But the purpose of the dc-link capacitors gives more dc voltage stability, the control of power in a dc link can be achieved through the current control voltage by minimization of loss considerations and adjusting the current to get the required power.

How we can fix the dc-link overvoltage:

- Use The function of coast to stop

- Suitable Frequency converter with brake resistor and chopper

- Check supply voltage for constant or transient high voltage

- Increase deceleration time

- Turn on the overvoltage controller

The features products of dc-link capacitors:

● Non-polar, low loss dielectric

● High reliability and lifetime expectation

● High RMS current rating

● Resistance to heavy-duty shock vibration

● High impulse current rating

● Temperature class: -40c / 70c

● Dry technology

● Low inductance

● Low ESR

● High capacitance stability over temperature

Lion capacitors offer capacitor solutions abroad domain applications including battery backup, motor start, and run, hid lighting, photo flash, and high voltage.

Dc link capacitors applications:

We can find dc-link capacitors in power inverters, high-power charging circuits, and motor drives. There are lots of applications for dc-link capacitors but we will mention a few of them:

- Railway technology: dc-link capacitor gives feed power into the intermediate circuit of the traction engine from the traction power AC voltage grid.

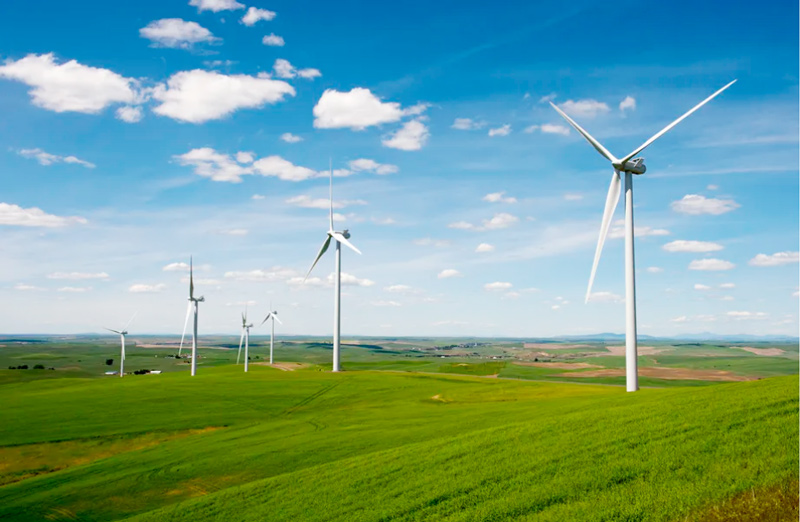

- Wind power plants: there are several dc-link capacitors, they play an important role in voltage stabilization.

- Solar power plants:dc-link capacitors are set in solar inverters and then exposed to high-frequency ripple voltage.

- Frequency inverters

Wind energy creation can be one of the renewable energy sources, the renewable and automotive applications with dc-link capacitors are suitable for wind, and solar power plants, So we need a dc-link capacitor for stabilizing the dc-link voltage of a grid inverter. By increasing the pulled energy, so the high voltage of the dc-link can remain constant.

What are power electronic capacitors used to?

They are used to prevent fragile microchips from noise and they store charge and spread it between all the other digital systems on the motherboard, and they have much more than originally thought. They used to give the system electricity and keep it working smoothly.

The industrial inverter and converters, and the DC link capacitors are suitable for automotive and renewable systems like solar energy applications, which involve electricity and batteries rechargeable to keep the energy. these all operate at a high voltage so it will lead to high performance. The automotive industry demands components that can adapt with rigor at a high level of temperatures. The metalized film capacitors are promoting a faster than electrolytic, nonpolarized, larger temperature rate, smaller size, and increase estimated operational.

Power electronics applications especially automotive applications depend on polypropylene film, and how they are thin which is thinner than the product is available on the market. And the polypropylene film at the beginning at temperatures exceeding 85c, so using vapor film that is stable at a temperature exceeding 140c.

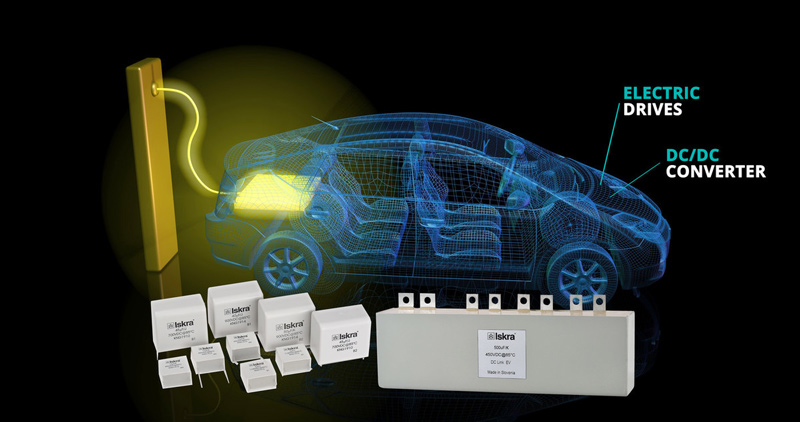

DC link applications in electric vehicles are treated as a charge-balancing energy store system. And it's placed in a voltage inverter between the dc like the battery and the ac which is the load part.

The types of dc-link capacitors:

● Film capacitors: they are the best in performance and rigor they contain two main varieties metalized film capacitors, foil capacitors, and film capacitors.

We can benefit from film capacitors through self-healing of the metal layer evaporates, and it relies on the voltage and the chemical compilation of the dielectric material. Also, the film capacitors have the advantage of dry construction by handling high energy content, pulse currents, and voltage gradient, all of this helps towards a longer lifespan for the film capacitors.

● Electrolytic capacitors: the electrolyte can either be a solid or chemical polymer which increases the capacitance values of the capacitor.it will come in a small package size with a suitable price.

Conclusion

The DC link capacitors have to withstand harsh environmental conditions and make adaptation to these challenges in industries like humidity, high temperature, and voltage stress. So you should get the information to know the difference between the types of dc-link and you can choose the best technology film or electrolytic and many types of capacitors such as nominal capacitance, temperature, and rated current ripple for power inverter applications of a few hundred watts and up of that.

Connected with the factory to get the final design that you need and their technical team will advise you on the best choice for your application from the types of DC-link capacitors. Another consideration in using the DC link capacitors involves the welfare of DC voltage demand at the rails and the expiry of the current application.
