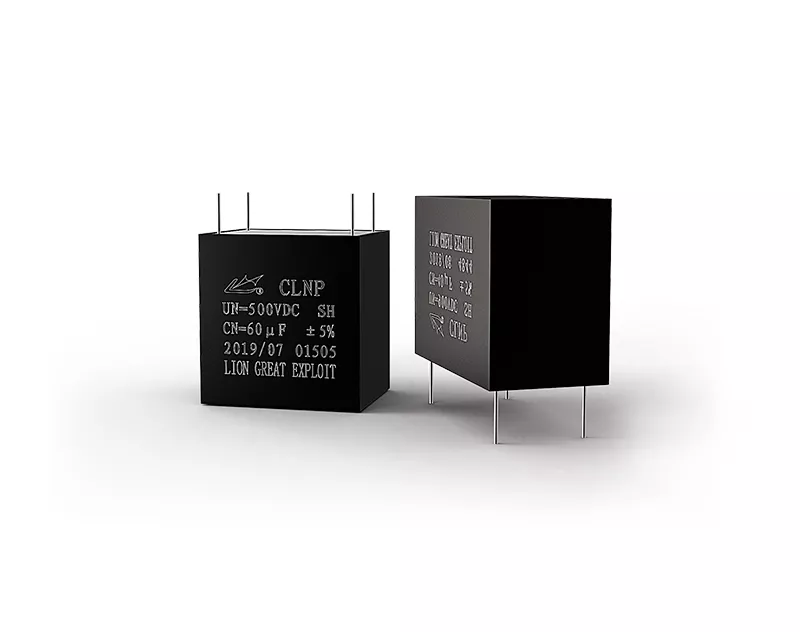

Metallized Polypropylene Film Capacitors DC-Link Capacitor CLNP series

Box packaging, light weight, small volume, pin out, suitable for circuit board installation

Low ESR

High Irms rating

High Î rating

Low self-inductance

High reliability and life expectancy

With self-healing

Non-polar

PLEASE SEND YOUR ENQUIRY

Request Free Samples

DOWNLOAD

PDF Download

APPLICATIONS AND MAIN PARAMETERS

✔ High performance DC chain applications

✔ HEV/EV: i.e. power train and OBC

✔ Renewable energies inverters

✔ Motor drives system

✔ Power supplies

✔ charging pile

PARAMETERS

● UN 450Vdc~1200Vdc

● CN 3.9μF~180μF

● Tolerance ±5%、±10%

● Ut-t 1.5UNDC(10s)

● Insulation Resistance CN ≥10000s(500V, 1min)

Tanδ ≤0.0010(100Hz);

● θhs 105℃

● Operating Temperature - 40℃~+105℃

● Storage Temperature -40℃~+85℃

● Flame Retardation UL94 V0

● Altitude ≤2000m

● Life expectancy 100 000h(85℃、UN、△C/C≤±3%)

● Reference standards IEC 61071 GB/T17702 AECQ200
