Power Electronic Capacitors
LION Capacitors specialize in capacitors for high current electrics, power electronics and energy pulse. We manufacture our capacitors with metallized film, power film, foil and dry dielectic. Depending on the operation conditions and applications, we can cover operating voltages of up to 100kV DC and 25kV AC. our line of film capacitors ranging from small chip-size capacitors to large building blocks. At LION, we develop and manufacture high-quality film capacitors for professional use in all areas of electronics.

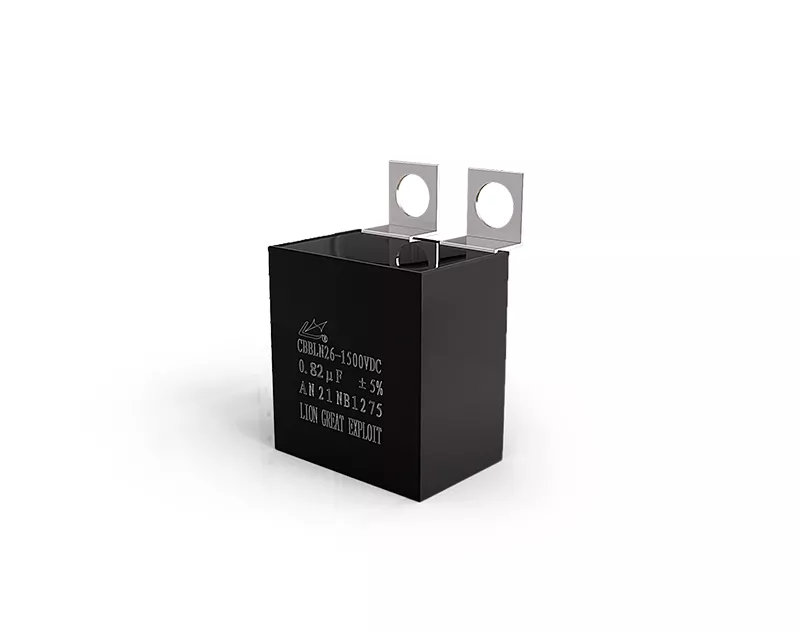

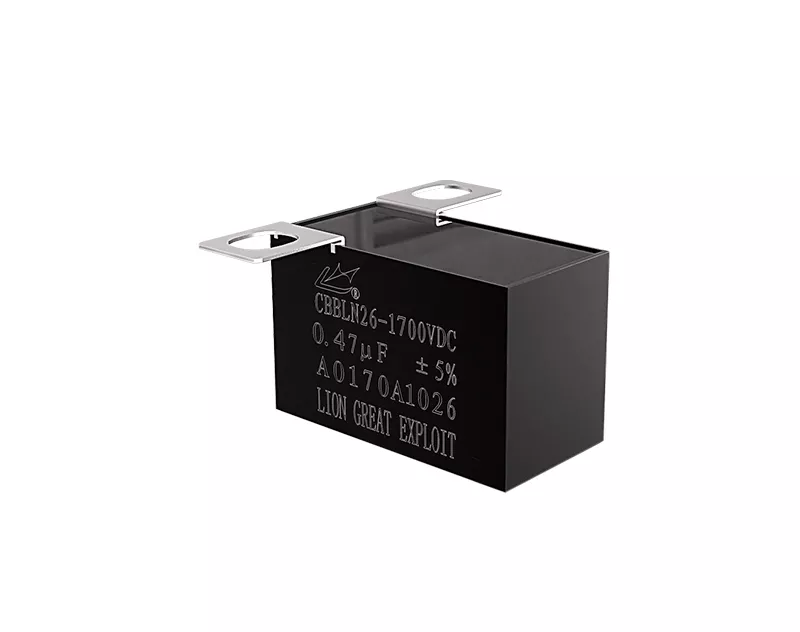

Copper lug leads, easy installation
Absorb peak voltage
Double metalized film, High Irms current
Low self-inductance, High reliability and life expectancy
With self-healing
Non-polar
APPLICATIONS AND MAIN PARAMETERS
IGBT, GTO, snubber
Peak voltage clamp
Welders inverters、UPS、EPS
Inductance heating machine
PARAMETERS
● UN 420Vac～1400Vac
● UNDC 700Vdc～4000Vdc
● CN 0.1μF~10μF
● Tolerance ±5%、±10%
● Ut-t 1.5UNDC（10s）
● Insulation Resistance CN ≥0.33μF 30000s（100V，1min）
CN ＜0.33μF 30000MΩ（100V，1min）
● tanδ CN≤1.5μF ≤0.0004（1kHz）；CN＞1.5μF ≤0.0008（1kHz）
● θhs 85℃
● Operating Temperature - 40℃～+85℃
● Storage Temperature -40℃～+85℃
● Flame Retardation UL94 V0
● Altitude ≤2000m
● Life expectancy 100 000h（85℃、UN、△C/C≤±3%）
● Reference standards IEC 61071 GB/T17702
