Power Electronic Capacitors
LION Capacitors specialize in capacitors for high current electrics, power electronics and energy pulse. We manufacture our capacitors with metallized film, power film, foil and dry dielectic. Depending on the operation conditions and applications, we can cover operating voltages of up to 100kV DC and 25kV AC. our line of film capacitors ranging from small chip-size capacitors to large building blocks. At LION, we develop and manufacture high-quality film capacitors for professional use in all areas of electronics.
Self-healing, long life
Dry type
Laminated bus leads, It can pass through a large current, Low LS, high specific energy
Low Rs, low heating, wide application temperature range;
Can be customized according to clients requirements.
APPLICATIONS AND MAIN PARAMETERS
▶ Transportation, EV or HEV
▶ Applied to the electric drive system for new energy vehicle;
PARAMETERS
● Reference Standards IEC61071, IEC60068, AEC-Q200
● Capacitance and Tolerance 225μF~3000μF
● Rated Voltage 450Vd.c.~900Vd.c.
● Tanδ ≤10×10-4（100Hz, 25℃）
● Insulation resistance ≥10000s（500V, 25℃）
● Hot spot 105℃
● Test Voltage between terminals 1.5Un 10s
● Test Voltage terminals to case 3000Va.c. 10s
● Cooling type Nature
● Operating temperature -40℃~+105℃
● Storage temperature -40℃~+105℃
● Humidity ≤95%
● Altitude ≤2000m
● Case material PC/PPS
● Package Dry type
● Flame retardant grade UL94- V0
● Clearances 7～10mm
● Creepage distance 7～10mm
● （UN,85℃, ΔC/C≤3%）Life expectancy 50 000 h
● Failure Rate 50FIT

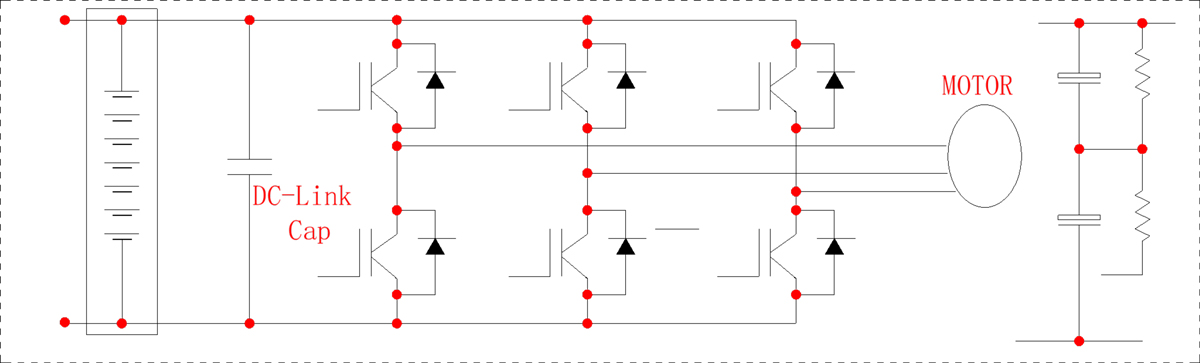

Circuit Topology Diagram of Motor Drive System
