Power Electronic Capacitors
LION Capacitors specialize in capacitors for high current electrics, power electronics and energy pulse. We manufacture our capacitors with metallized film, power film, foil and dry dielectic. Depending on the operation conditions and applications, we can cover operating voltages of up to 100kV DC and 25kV AC. our line of film capacitors ranging from small chip-size capacitors to large building blocks. At LION, we develop and manufacture high-quality film capacitors for professional use in all areas of electronics.

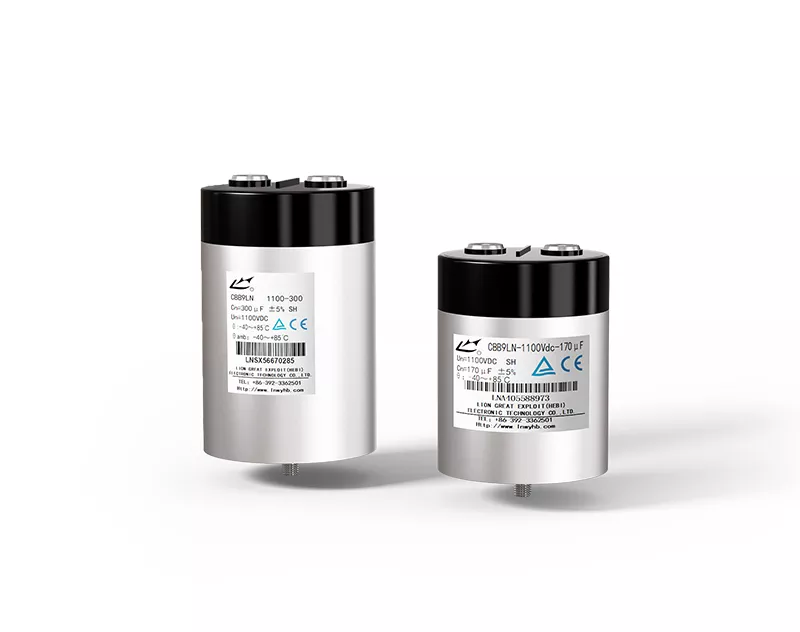

Cylindrical aluminum shell packaging, high-performance resin filling;
Copper screw leads, insulated plastic cover positioning, easy installation
High Irms rating
High Î rating
Low LS
Can adapt to high temperature and high humidity environment, High reliability and life expectancy
With self-healing
Non-polar
APPLICATIONS AND MAIN PARAMETERS
DC-linking and DC-filtering in frequency converter
DC-linking wind and solar power converter
UPS, SVG, APF system
EV/HEV, Railway applications -Rolling stock equipment
PARAMETERS
● UN 900Vdc～2000Vdc
● CN 82μF~2200μF
● Tolerance ±5%、±10%
● Ut-t 1.5UNDC（10s）
● Ut-c 2Ui+2000（10s）
● Insulation Resistance RC≥10000s（500V）
● tanδ ≤0.0020（100Hz）
● θhs 85℃
● Operating Temperature - 40℃～+85℃
● Storage Temperature -40℃～+85℃
● Flame Retardation UL94 V0
● Torque of terminals M6:10N·m, M8：12N·m
● Altitude ≤4000m
● Life expectancy 10 0000h（85℃、UN、△C/C≤±3%）
● Reference standards IEC 61071 IEC 61881
