Power Electronic Capacitors
LION Capacitors specialize in capacitors for high current electrics, power electronics and energy pulse. We manufacture our capacitors with metallized film, power film, foil and dry dielectic. Depending on the operation conditions and applications, we can cover operating voltages of up to 100kV DC and 25kV AC. our line of film capacitors ranging from small chip-size capacitors to large building blocks. At LION, we develop and manufacture high-quality film capacitors for professional use in all areas of electronics.

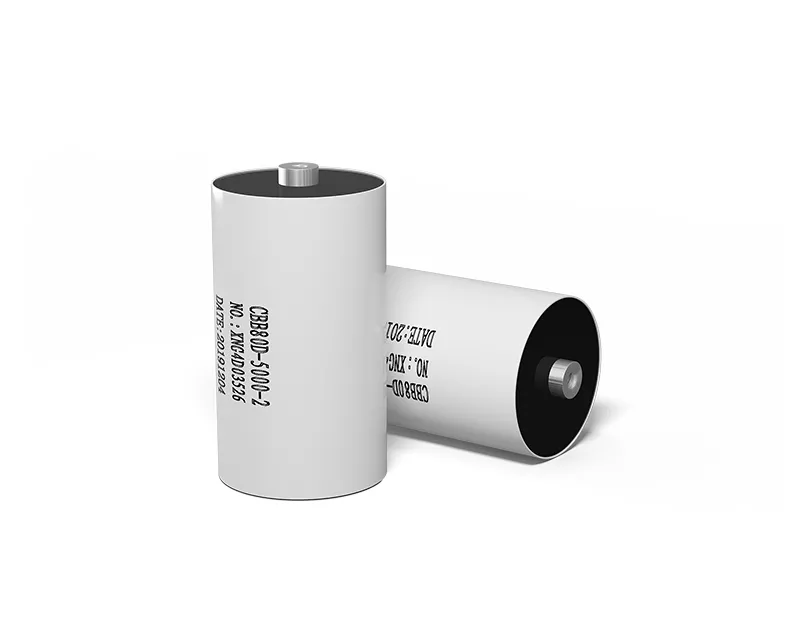

Cylindrical, polyurethane potting, dry structure;
The axial nut is led out;
Non inductive winding, axial leading out and minimal self-induction;
High Îs rating
It has self-healing and long service life.
APPLICATIONS AND MAIN PARAMETERS
GTO, IGBT, thyristor, other switching circuits;
It is mainly used in the absorption circuit of soft start equipment to protect the switch.
PARAMETERS
● UN 2600Vac～10000Vac
● UNDC 4000Vdc～15000Vdc
● CN 0.082μF~3.3μF
● Tolerance ±5%、±10%
● Ut-t 1.5UNDC（10s）
● Insulation Resistance RC≥10000s（500V）
● tanδ ≤0.0020（10kHz）
● θhs 75℃
● Operating Temperature - 40℃～+75℃
● Storage Temperature -40℃～+85℃
● Flame Retardation UL94 V0
● Altitude ≤2000m
● Life expectancy 10 0000（70℃、UN、△C/C≤±10%）
● Reference standard IEC 61071 GB/T17702
