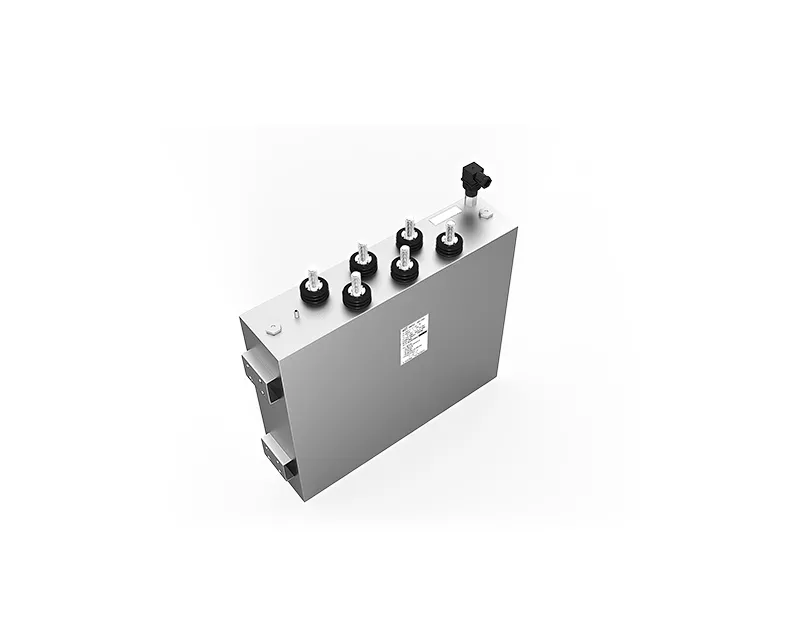

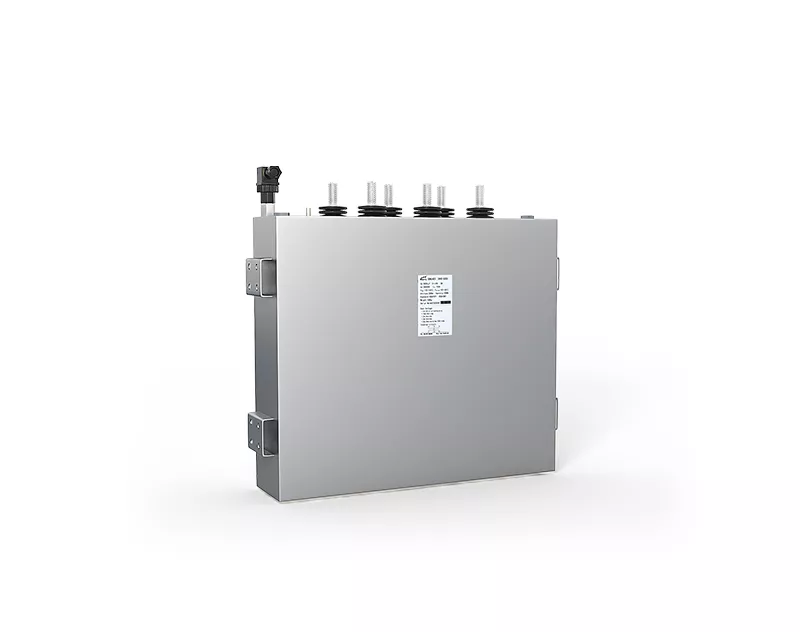

High Voltage Energy Pulse Capacitors
Aluminum or stainless steel rectangular case package, is very helpful for cooling, sealed with polyurethane
Copper nuts or bolts terminal leads, is very helpful for cooling too
High Î peak
High Î surge
Low self-inductance
High reliability and life expectancy
With self-healing
Non-polar
APPLICATIONS AND MAIN PARAMETERS
Pulse circuit occasion
Energy storage occasion
DC circuit occasion
PARAMETERS
| Capacitance Range | 100μF～11250μF |
| Rated Voltage | 2200Vdc～15000Vdc |
| Tolerance | 0～+5% ±5% |
| Ipeak | 8～45kA |
| Isurge | 150～750kA |
| Tanδ | ≤0.003 (100Hz) |
| Ut-t | 1.5UN DC 10s |
| Ut-c | 5000VAC 10s 10000VAC 10s |
| Ls | ＜200nH |
| θamb | -25℃～+60℃ |
| Storage Temperature | -40℃～+85℃ |
| Hotspot Temperature | 85℃ |
| Altitude | ≤2000m |
| Flame Retardation | UL94V-0 |
| Torque of Terminals | M10:20Nm M12:25Nm M16:30Nm |
| Reference Standards | IEC61071 GB/T 17702 JB/T8168 |
