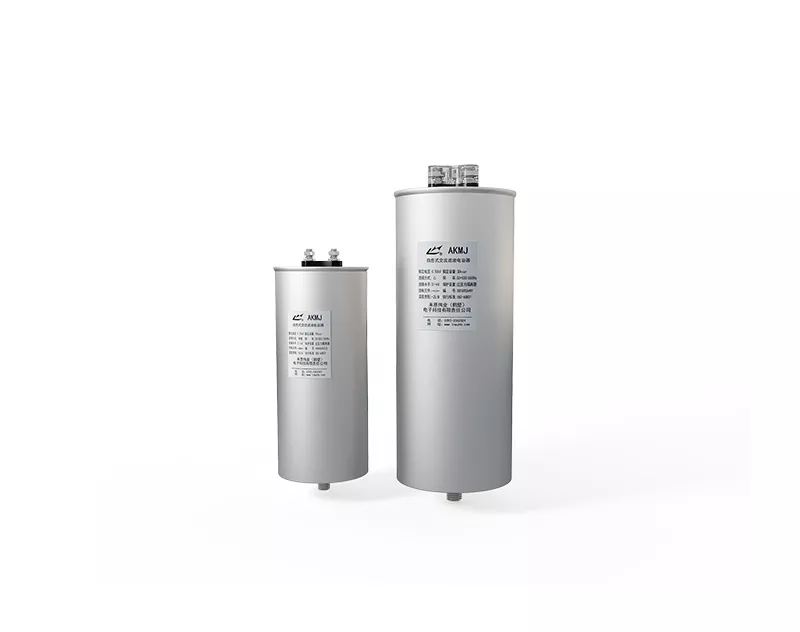

AC Power Capacitors
Aluminum round housing package
Dry structure, no pollution and explosion hazard
Internal discharge resistance and over pressure explosion-proof device
It can bear large over current
High reliability and life expectancy
With self-healing
Non-polar
APPLICATIONS AND MAIN PARAMETERS
Widely used in power electronic equipment for AC filtering.
It is used in high-power non-linear load such as converter, frequency converter and other converters, as well as power supply system with high harmonic content such as electric drive, welding machine, standby power supply, etc., to filter out high-order harmonic and improve power grid voltage quality.
It is connected with inductance, resistance and other devices to form an AC filter.
Provide low impedance channel for one or more harmonic currents and improve power factor.
PARAMETERS
● Rated voltage UN: 440Vac～850Vac
● Capacitance QN: 6.67~50kvar
● Voltage between terminals Ut-t: 2.15UN（25℃±5℃, 3S）
● Voltage between case and terminal: Ut-c 4000Vac 3s（Rated voltage≤650V）, 6000Vac 3s（Rated voltage＞650V）
● Capacitance tolerance: ±5%
● Tanδ: 0.0020（100Hz）
● Over voltage:
| 1.1UN | Up to 8h daily |
| 1.15UN | Up to 30min daily |
| 1.2UN | 5min during life 200 times |
| 1.3UN | 1min during life 200 times |
● Over current: 1.3×IN
● Surge current Is: 200×IN
● Environmental Conditions: -25/B, ＜90%RH
● Terminal type: M8 screw（Torque 5N·M）
M8 stud （Torque≤5N·M）
● Installation: Product vertical upward installation, installation distance ≥ 30mm
Cooling type: Natural cooling or forced cooling (adequate ventilation shall be provided for the installation of cabinet and distribution room, and refrigeration equipment shall be installed if necessary)
● Altitude: ≤2000m
● Life expectancy: 50 000h（UN, △C/C≤±3%）
● Reference standards: IEC 60831 GB/T 12747
